Okay, which Charger is the Coke Bottle style one

Started by last426, March 31, 2010, 01:47:01 PM

Previous topic - Next topic

last426

Over the past few years I have come across some who say the second generation Charger is the Coke bottle one and other articles that claim the third gen is Coke shaped. Or are both?  I kinda see it in my 71 but second gens seem too straight.  And are you supposed to look from the side or top down? Anyone know the real story? Kim









Can you or your company help manufacture/market my great invention? Go to www.safefridge.com to see it and make sure to check out the ad. If you think it has potential and can help, write me at safefridge@gmail.com and perhaps we can make a deal.

Skinypete

Its the Third Gens that are the Coke Bottle shaped

DJMIII
DJMIII

XS29J8

Quote from: last426 on March 31, 2010, 01:47:01 PM
Over the past few years I have come across some who say the second generation Charger is the Coke bottle one and other articles that claim the third gen is Coke shaped. Or are both?  I kinda see it in my 71 but second gens seem too straight.  And are you supposed to look from the side or top down? Anyone know the real story? Kim

Hi Kim, I've always thought the new for 68 Charger was based on the Coca-Cola bottle and the Third Generation just made it more apparent. Here is a quote about Richard Sias and his GTO inspired design.....What designer Richard Sias came up with was a double-diamond design that would later be referred to as coke bottle styling. From the side profile the curves around the front fenders and rear quarter panels look almost like a Coke bottle. Front and rear end sheet metal was designed by Harvey J Winn. The rear end featured a "kick up" spoiler appearance, inspired by Group 7 racing vehicles. On the roof a "flying buttress" was added to give the rear window area a look similar to that of the 1966-67 Pontiac GTO
Hope this helps...... :2thumbs:

Cheers,

Steve
HEMI 68 CHARGER R/T- 4-SPEED- 3.54 DANA- PP1 RED- BLACK VINYL TOP- PEARL WHITE UPHOLSTERY-STRIPE DELETE- AM 8 TRACK- NON CONSOLE- DRIVEN YEAR ROUND IN SOUTHWEST FLORIDA http://900z1.multiply.com/  http://kawasaki-z-classik.com/index.php  https://spreadsheets.google.com/ccc?key=0AmY22PaMZ1H3dFczVWR2ZlJaX1BvTDFIVUdUZVlseWc&hl=en&authkey=CPi1hp8J#gid=0

Khyron

my ex-wife has a coke bottle shape....

unfortunately it was a 2 liter.


Before reading my posts please understand me by clicking
HERE, HERE, AND HERE.

moparstuart

Quote from: Khyron on March 31, 2010, 02:06:21 PM
my ex-wife has a coke bottle shape....

unfortunately it was a 2 liter.
:smilielol: :smilielol: :smilielol: :smilielol:


  2nd gen is a coke bottle , picture the side of it and stand it up right .


GO SELL CRAZY SOMEWHERE ELSE WE ARE ALL STOCKED UP HERE

tan top

Quote from: moparstuart on March 31, 2010, 02:13:23 PM
Quote from: Khyron on March 31, 2010, 02:06:21 PM
my ex-wife has a coke bottle shape....

unfortunately it was a 2 liter.
:smilielol: :smilielol: :smilielol: :smilielol:


  2nd gen is a coke bottle , picture the side of it and stand it up right .








:smilielol: always thought second generation also  :yesnod:
Feel free to post any relevant picture you think we all might like to see in the threads below!

Charger Stuff
http://www.dodgecharger.com/forum/index.php/topic,86777.0.html
Chargers in the background where you least expect them
http://www.dodgecharger.com/forum/index.php/topic,97261.0.html
C500 & Daytonas & Superbirds
http://www.dodgecharger.com/forum/index.php/topic,95432.0.html
Interesting pictures & Stuff
http://www.dodgecharger.com/forum/index.php/topic,109484.925.html
Old Dodge dealer photos wanted
 http://www.dodgecharger.com/forum/index.php/topic,120850.0.html

MoparManJim

Okay, take a coke bottle, I sugject a old glass one. take a good look at it. Then tilt your head over and look at a 2nd gen charger. Now pay no attention to the roof of the car but rather just the rear quarter skin line and run you eye up the side following the body line. As your eye goes up and down over the rear skin that would be like the first part of the coke bottle (buttom part) and as your eye runs across the center part of the charger over the door area you will see to body lines here kinda over laping (this would be the center top part of the coke bottle. Now as your eye runs up the door top panel line and starts out into the front fender of the charger you are now at the top part of the coke bottle almost, as your passest the hump in the fender this would be the hump part of the coke bottle top part. and as your eye comes to the front of the front fender edge you eye are now really and kinda at the top part of the coke bottle.  :icon_smile_wink:

You see, when you really really look at the coke bottle and then look at the 2nd gen charger, you can really see the coke bottle design in it alot  :lol:

Troy

Look at a 2nd gen from above - it's real easy to see the coke bottle shape. The reference came about with the 68 models.

Troy
Sarcasm detector, that's a real good invention.

moparstuart

Look at the angle of my red car in my signature looks just like a coke bottle .
GO SELL CRAZY SOMEWHERE ELSE WE ARE ALL STOCKED UP HERE

Brock Samson

 "kay, take a coke bottle, I sugject a old gtlass one. take a good look ay it. then tilt your head over  and look at a 2nd gen charger. Now pay no attention to the roof of the cra but rather just the reas quarter skin line and run you eye up the side following the body line. As your eye goes up and down over the rear skinm that would be like the first part of the coke bottle (buttom part) and as your eye runs across the center part of the charger over the door area you will see to body lines here kinda over laping (this would be the center top part of the coke bottle. Now as your eye runs up the door top panel line and starts out into the front fender of the charger you are now at the top part of the coke bottle almost, as your passest the hump in the fender this would be the hump part of the coke bottle top part. and as your eye comes to the front of the front fender edge you eye are now really and kinda at the top part of the coke bottle."


:scratchchin:  to see a charger, or read your posts?..  :shruggy:

hemigeno


Brock Samson


69bronzeT5

Feature Editor for Mopar Connection Magazine
http://moparconnectionmagazine.com/



1969 Charger: T5 Copper 383 Automatic
1970 Challenger R/T: FC7 Plum Crazy 440 Automatic
1970 GTO: Black 400 Ram Air III 4-Speed
1971 Charger Super Bee: GY3 Citron Yella 440 4-Speed
1972 Charger: FE5 Red 360 Automatic
1973 Charger Rallye: FY1 Top Banana 440 Automatic
1973 Plymouth Road Runner: FE5 Red 440 Automatic
1973 Plymouth Duster: FC7 Plum Crazy 318 Automatic

SFRT

Always Drive Responsibly



Uploaded with ImageShack.us

MoparManJim

Quote from: Brock Samson on March 31, 2010, 03:49:58 PM
"kay, take a coke bottle, I sugject a old gtlass one. take a good look ay it. then tilt your head over  and look at a 2nd gen charger. Now pay no attention to the roof of the cra but rather just the reas quarter skin line and run you eye up the side following the body line. As your eye goes up and down over the rear skinm that would be like the first part of the coke bottle (buttom part) and as your eye runs across the center part of the charger over the door area you will see to body lines here kinda over laping (this would be the center top part of the coke bottle. Now as your eye runs up the door top panel line and starts out into the front fender of the charger you are now at the top part of the coke bottle almost, as your passest the hump in the fender this would be the hump part of the coke bottle top part. and as your eye comes to the front of the front fender edge you eye are now really and kinda at the top part of the coke bottle."


:scratchchin:  to see a charger, or read your posts?..  :shruggy:

The car! the Car!  :slap: :pity: :lol:

Okay, so I was in a hurry earlier and didn't proof read my reply  :shruggy:  :lol:

68X426

Second Generation is and was the Coke Car. :2thumbs:


The 12 Scariest Words in the English Language:
We are Here from The Government and
We Want to Help You.

1968 Plymouth Road Runner, Hemi and much more
2013 Dodge Challenger RT, Hemi, Plum Crazy
2014 Ram 4x4 Hemi, Deep Cherry Pearl
1968 Dodge Charger, 318, not much else
1958 Dodge Pick Up, 383, loud
1966 Dodge Van, /6, slow

RD

both 2nd and 3rd gens.. not just 2nd gen specific
67 Plymouth Barracuda, 69 Plymouth Barracuda, 73 Charger SE, 75 D100, 80 Sno-Commander

Dans 68

1973 SE 400 727  1 of 19,645                                        1968 383 4bbl 4spds  2 of 259

Khyron

Quote from: Dans 68 on March 31, 2010, 06:52:25 PM
The '68 started it all...it's the real thing. http://www.youtube.com/watch?v=_EY8DFqFpws&feature=related  :icon_smile_big:


Dan

I watched all those damn hippys sing and didn't see one Charger in there :mad:


Before reading my posts please understand me by clicking
HERE, HERE, AND HERE.

Dans 68

Quote from: Khyron on March 31, 2010, 09:28:33 PM
Quote from: Dans 68 on March 31, 2010, 06:52:25 PM
The '68 started it all...it's the real thing. http://www.youtube.com/watch?v=_EY8DFqFpws&feature=related  :icon_smile_big:


Dan

I watched all those damn hippys sing and didn't see one Charger in there :mad:

That's 59 seconds of your life you won't get back.  :rofl:  "It's the real thing" refers to the '68 in my post. That is all.

:scratchchin: But I always thought the assembled crowd at the end of the clip resembled the arrow-like "dart" symbol the Charger used....  :Twocents:   :icon_smile_wink:

Dan
1973 SE 400 727  1 of 19,645                                        1968 383 4bbl 4spds  2 of 259

Skinypete

Guess i was wrong :shruggy: lol, oh well...Learn something new every day
DJMIII

Brock Samson

 I've read the third gen was called in the styling studio the "Fuselage Design".

Khyron

Quote from: Dans 68 on March 31, 2010, 09:36:29 PM
:scratchchin: But I always thought the assembled crowd at the end of the clip resembled the arrow-like "dart" symbol the Charger used....  :Twocents:   :icon_smile_wink:

Dan

o.k....now you're just reaching :lol:


Before reading my posts please understand me by clicking
HERE, HERE, AND HERE.

mikesbbody

This thread is making me thirsty I think I'll go have a ....
Seriously, I thought they were talking about the 2nd Gen's either way their both cool IMO

THE STIG


68X426

I think the Coke Car is way better. :o


The 12 Scariest Words in the English Language:
We are Here from The Government and
We Want to Help You.

1968 Plymouth Road Runner, Hemi and much more
2013 Dodge Challenger RT, Hemi, Plum Crazy
2014 Ram 4x4 Hemi, Deep Cherry Pearl
1968 Dodge Charger, 318, not much else
1958 Dodge Pick Up, 383, loud
1966 Dodge Van, /6, slow

flyinlow

Quote from: Brock Samson on April 01, 2010, 10:45:55 AM
I've read the third gen was called in the styling studio the "Fuselage Design".






On fighter aircraft they sometimes use a wasp waist or coke bottle shape fuselage. the waist is where the wing protrudes. This helps streamline the over all cross section of the aircraft. As the wings start to add to the cross section , the smaller fuselage waist  helps keep it total cross section from having a big bulge. Lowers drag.

The coke waist on a 2nd or 3rd gen. Charger is where the cabin starts to protrude into the airstream.

Windtunnel or styling? ...... Don't know, however ir's a win/win for us.


Mr.Woolery

Both the 2nd and 3rd gen Chargers are "Coke bottle" designs, with the 3rd gen bodies also being called "Fuselage" designs.  They took the Coke bottle design from the 2nd gen and made it more pronounced in the 3rd gen.
-1971 Charger R/T clone restomod project

For details on my cars, check out my web blog


Brock Samson

 lettuce beat on this old paint some more shall we?..

 :horse:


Kim you'r a Troll,.. you know that right?..  :lol:

http://www.dodgecharger.com/forum/index.php/topic,15865.0.html





my point is showing these GTO profiles is that the Charger and Dodge in general was chasing Pontiac in the market
disagree if you like with my feeling that Dodge's designs for both manufacturing and style reasons aped the GM design

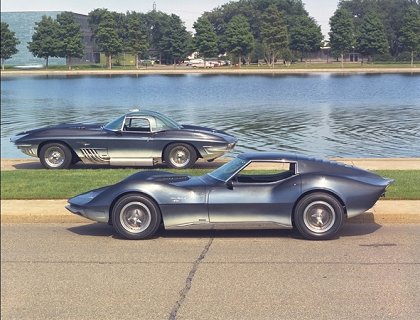

started by Bill Michell of the wasp waists begun on the Mako Shark show cars in the early to mid '60s..
The third Gens had in common with the '68 G.M. intermediates the lack of a defined rear fender line seperating the roof from the rear fender also, the rear window designs were basicly carbon copies the same can be seen in the Torino designs especially the fastbacks of both the '68/69 and the 70/71 then again on the 72 up which even more closely followed industry practice,.. I suspect ease of manufacture as well as design trends, wasn't the third gen significantly  wider?.. interior space across the rear could be maximized by widening the roof to the outside edges of the rear fender.
Just my thoughts and 2 cents. pardon my pontifications but I do love these Designs...








last426

I got my information from this article.  http://musclecars.howstuffworks.com/classic-muscle-cars/1971-dodge-charger-hemi.htm  But Brock is correct on one thing for sure.  When I bought my car from the original owner I asked why he had chrome side mirrors and he said to distinguish the car from the GTO.  Kim







_____________________________________________________________________________________________________
Most all know about my patent.  I have set up a website looking for a partner.  Check this out if you or your company help manufacture/market my great invention.  Go to http://www.safefridge.com to see it and make sure to check out the ad.  If you think it has potential and can help, write me at safefridge@gmail.com and perhaps we can make a deal.


Brock Samson

http://en.wikipedia.org/wiki/Coke_bottle_styling

i found a charger III pic I've never seen before over on allpar.
