4-speed console carpet

[ChargerST]

How do the carpet pieces for a 4-speed console attach to the console? The 4-speed carpet kit has one large piece more than the auto kit. I understand that the large piece covers the plastic/cardboard side piece but what about the carpet piece that is used on the left side on auto consoles? Does it go under the plastic hump cover?

[bull]

Get one of these: http://www.bing.com/images/search?q=mopar+4+speed+console&view=detail&id=D4D8C08CF3ECC7AC2C055E82A5489D6DD619EEEF&first=43

Glue the biggest chunk of carpet in your kit to it and then attach it to the side. Trim as needed.

[bull]

Nevermind. At first I thought you were working on a 4 speed car.

[Troy]

I believe your answer is yes? The console has carpet on both sides and a piece underneath at the back. The 4-speed "hump" cover gets a 4th, large piece. You can see some detail here in AKCharger's 4-speed swap thread:
http://www.dodgecharger.com/forum/index.php?topic=95764.0

Troy

[madgus2000]

Try this, it may give you some good ideas, good luck!

http://www.dodgecharger.com/forum/index.php/topic,114078.0.html


It shows a 4 speed and automatic console differences.  The 4 speed does have an extra piece to cover the hump.  I have included a picture so you can see how the carpet looks.
The console on a 4 speed has 7 holes for attaching the carpet/chrome trim, whereas the automatic console has 5 holes.

[ChargerST]

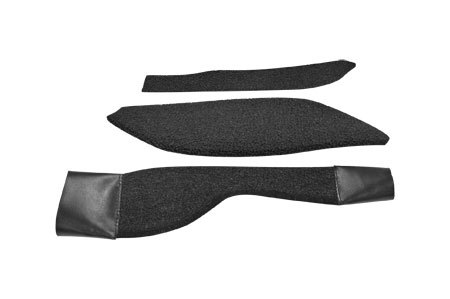

Maybe I wasn't clear enough. Here's the auto kit:


and the 4-speed kit:


as you can see the 4-speed kit contains all the parts from the auto kit plus one large extra piece. The middle piece in auto kit is for the left side of the console - it is also included in the 4-speed kit but why when it is covered by the plastic side piece that attaches to the console? Or where does the piece on the right side of the 4-speed kit go?

[A383Wing]

the middle piece is for auto console, if yours is a 4spd, leave the center piece off, it's not used. They include all pieces for auto & manual trans so they don't have to stock 2 different part numbers for the kit
